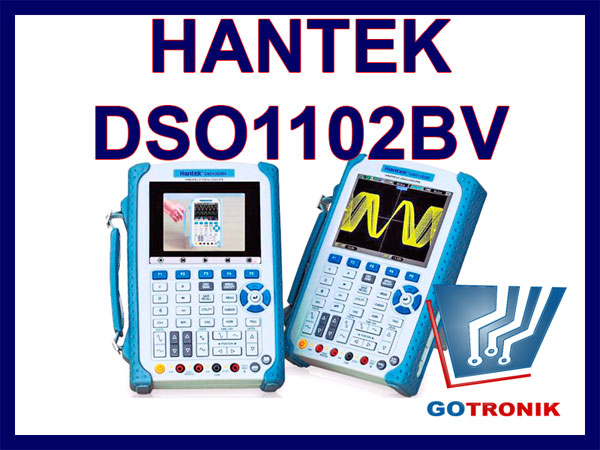

Oscyloskop cyfrowy DSO1102BV z multimetrem skopometr

Model

DSO1202BV

DSO1102BV

DSO1062BV

Oscilloscope mode

szerokość pasma:

200MHz

100MHz

60MHz

próbkowanie w czasie rzeczywistym

1GSa/s Real-time Sample Rate

próbkowanie ekwiwalentne

25GSa/s Equivalent Sample Rate

długość rekordu

Single-channel: Maximum 1M
Dual-channel: Maximum 512k

zakresy podstawy czasu

2nS/div-2000S/div (2, 4, 8 sekwencja)

Delay Time Accuracy

500ps

Video Help

Build in

Flash Memory

wbudowana karta 2G SD Card

rodzielczość A/D

8-bit rozdzielczość pionowa

zakresy czułości

2mV/div～5V/div at input BNC

Position Range

±50V(5V/div),
±40V(2V/div～500mV/div),
2V(200mV/div～50mV/div)
±400mV(20mV/div～2mV/div)

czas narastania na BNC

≤1.7ns

≤3.5ns

≤5.8ns

DC Gain Accuracy

±4% for Sample or Average acquisition mode, 5mV/div to 2mV/div
±3% for Sample or Average acquisition mode, 5V/div to 10mV/div

wyzwalanie


Trigger Sensitivity
(Edge Trigger Type)

DC: CH1/CH2(Typical) 1div from DC to 10MHz;1.5div from 10MHz to Full
AC: Attenuates signals below 10Hz

HF Reject: Attenuates signals above 80kHz

LF Reject: Attenuates signals below 150kHz

Noise Reject: Reduces trigger sensitivity

Trigger Level Range

CH1,CH2: ±8 divisions from center of screen

Trigger Level Accuracy,
typical (Accuracy is for signals having rise and fall times ≥20ns)

CH1,CH2: ±(0.3div×V/div) (within ±4 divisions from center of screen)

Hold off Range

100ns-10s

Trigger Type

Edge

Trigger on the rising or falling edge

Pulse Width

Trigger (when >,<,=,≠) on positive or negative pulses
Pulse Width Range: 20ns-10s

Video

Trigger on an NTSC, PAL, or SECAM standard video signal
Line Range: 1-525 (NTSC), 1-625 (PAL/SECAM)

Slope

Trigger (when >,<,=,≠) on a positive or negative slope
Set Time: 20ns–10s

Overtime

from the rising or falling edge
Set Time: 20-10s

Alternate

Internal trigger on edge, pulse width, video or slope

Measurement

Cursors

Manual: The difference between voltage cursors △V; the difference between time cursors △T; 1/△T calculated by Hz.
Tracing: The voltage and time at a waveform point

Automatic

Pk-Pk, Max, Min, Mean, Cyc RMS, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width

Meter Mode

Max. Resolution

6,000 Counts

DMM Testing Modes

Voltage, Current, Resistance, Capacitance, Diode & Continuity

Max. Input Voltage

AC: 600V, DC: 800V

Max. Input  Current

AC: 10A, DC: 10A

Input Impedance

10 MΩ

Display

Type

Right angle 5.6 16-digit color LCD

Resolution

640*480 dots

Contrast

16 gears, with the progress bar to show adjustment

Interface

USB host and USB slave, LAN Optional

Power Supply

Voltage

 DC Input:12--17VDC, 1500mA

Mechanical

Size

245 x 163 x 52 (mm)

Weight

1.3KG (exclusive of packing and accessories)
